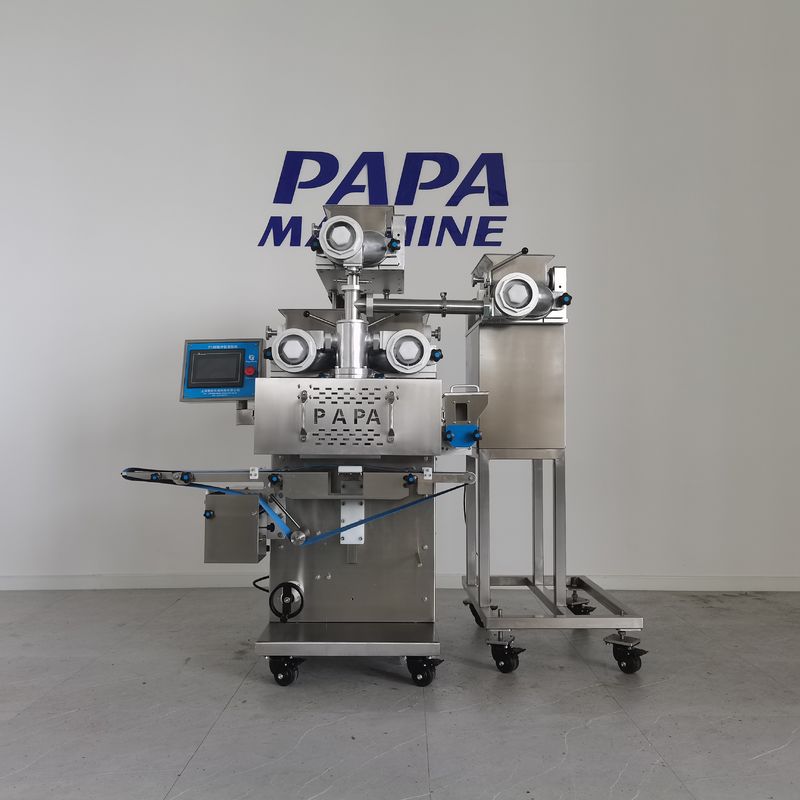

P188 Automatic Three Fillings Energy Dates Ball Encrusting Making Machine For Sales
Description:
The P188 Three Fillings Mooncake Encrusting Machine is a versatile machine capable of producing a variety of filled foods, whether it's wontons, rolls, samosas, or anything else.
The P188 Four-Hoppers Encrusting Machine allows you to create unique flavor and texture combinations that will impress your customers. You can use one hopper for meat, one for vegetables, one for cheese, and so on. The possibilities are endless.
The P188 can also be easily integrated with other machines, such as a maamoul pump or tray sorter. It's an excellent choice for businesses that need to produce large quantities of food quickly and efficiently.
This P188 machine is designed for making baked snacks, biscuits, pastries, and meat or fish pâtés. It's a high-speed, easy-to-use and clean machine with a wide range of functions, suitable for a wide range of ingredients. It handles even medium-hard ingredients with ease.
Specifications:
Model
P188
Capacity
60-99pcs/min
Product shape
ball, cone, round strip, side square, terraced, serrate and etc.
Product weight
10-250g
Casing and filling proportion
1:9-10:0
Voltage
220V, single phase
Power
3.4kw
Dimension
1680*860*1300mm
Weight
400KG
Features for the P188 Encrusting Machine:
1. The connecting pipe and the inner hole of the connecting seat at the connection between the rectifier and the main body are enlarged to reduce damage to the raw materials and make the discharging faster and smoother.
2. The main body is enlarged, the accessories are reduced, there are no dead corners, and it is easy to clean. And when quadruple filling is added later, the internal space is sufficient, the output is smoother, and the production capacity is higher than that of the P160.
3. The inner stuffing tube adopts Rheon technology, which ensures smooth material discharging, no material eccentricity, and no need for a center ring. The P160 relies on a center ring to solve the problem of eccentricity. Will damage raw materials. The material is made of integral cast aluminum and is not easily damaged.
4. The inner filling tube is fixed by pulling up, and the inner filling tube can be removed without removing the four fixed die head bolts, which saves cleaning and disassembly time.
5. The upper plate of the three-stuffing machine has a reserved egg yolk hole. The egg yolk beating device can be directly installed later to beat the egg yolk. The egg yolk beating position is fixed on the upper machine plate, which is more stable than the P160.
6. The cutter adopts a vertical up and down motion cutting method. The cut is parallel to the conveyor belt. The filling effect is more uniform and the weight stability is better guaranteed (the motor adopts a brake imported from Japan to make the filling effect more uniform). It is the same as Rheon. same brand). Motor brand Nissei. P160 is a swing structure.
7. The cutter, cutter head lifting and lifting are all made of sheet metal processing structure. The transmission is stable and the noise is low. The machine will not shake when 100 pieces are turned on. /minute. The 160 cutter head adopts sheet metal structure. 160. If the drive is faster, the machine will shake because the internal cutter head transmission is a swing structure.
8. The upper cam has low noise and the adjustment of the upper cam is simple and convenient.
9. The conveyor belt knife edge uses German igus angular bearings, which have less friction than the 160-piece metal crushing blade, thus greatly extending the life of the belt.
10. The mixing teeth and copper lining are made of new materials, which are more wear-resistant and will not produce black oil or material leakage.
11. The outer mold fixed die head is not easy to damage the thread teeth when cleaning the inner teeth, and the disassembly wrench is equipped with a hexagonal hole type, making disassembly more convenient.
12. The touch screen is placed on the left side so that during debugging, the left hand can control the touch screen and the right hand can pick up the product.
Food produced by P188 Automatic Four Hoppers encrusting machine: Application:
Encrusting machine for strip/twist cookies making machine:
;
